Tube Alternating Pressure Pad by Vive Health

Product Description

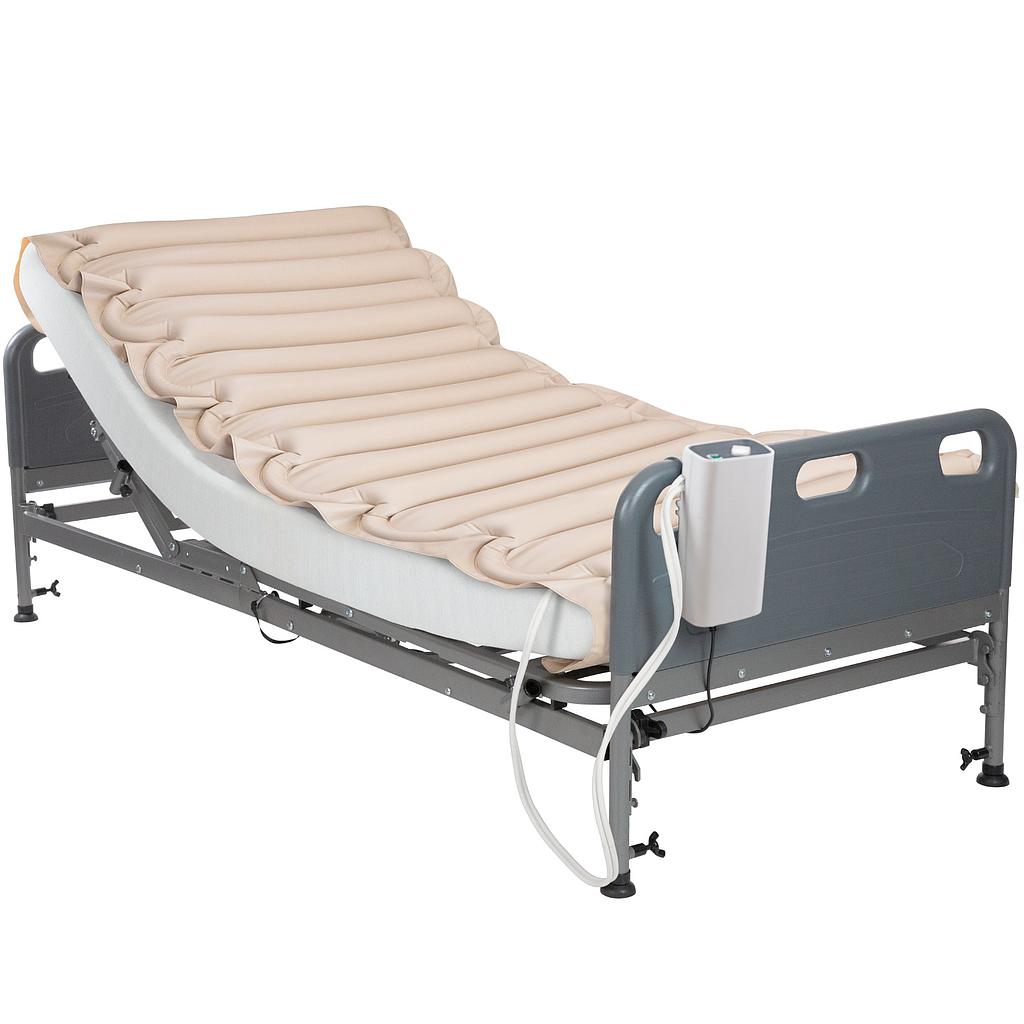

Tube Alternating Pressure Pad for Continuous Pressure Redistribution

The Tube Alternating Pressure Pad by Vive Health is designed to provide alternating pressure therapy for individuals who remain in bed for extended periods. Featuring 22 tubular air cells arranged in two alternating air chambers, the system automatically cycles pressure every six minutes to help redistribute pressure across the support surface. The included adjustable pump delivers consistent airflow across a 35–130 mmHg pressure range, making the system suitable for home care, long-term care, and clinical environments. Supports up to 300 lbs.

Key Features

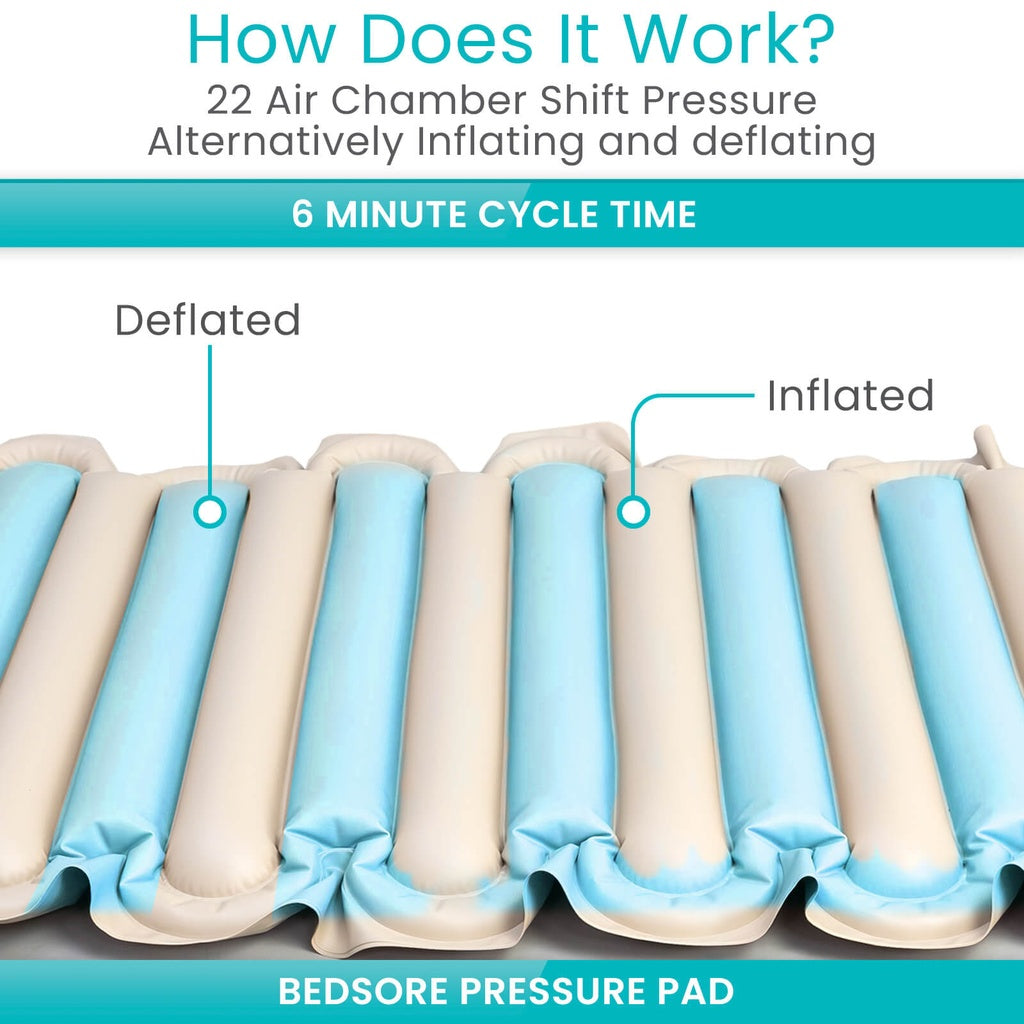

22 Tubular Air Cell Alternating Therapy

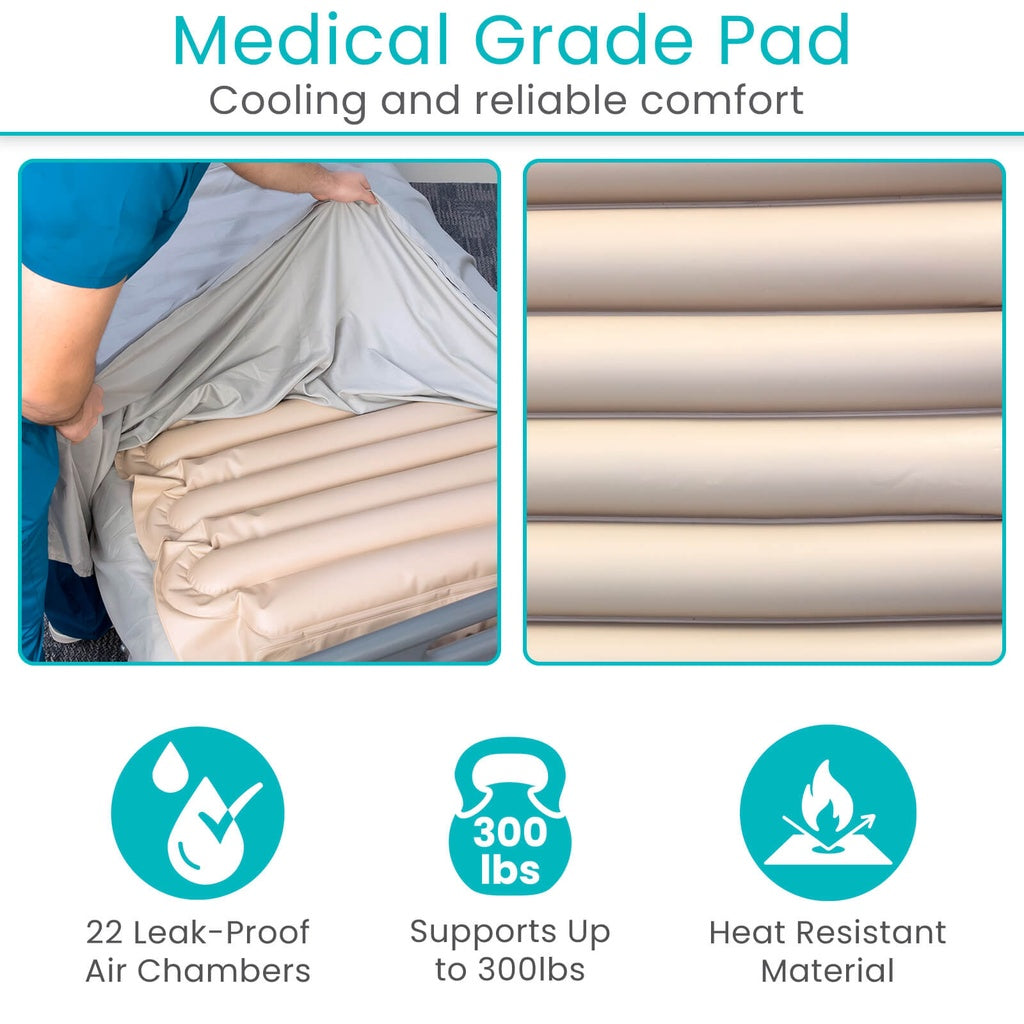

The mattress features 22 durable tubular PVC air cells divided into two independent air chambers. The pump alternates inflation between each chamber every six minutes, providing continuous pressure redistribution across the mattress surface while maintaining patient support.

Adjustable Pressure Pump with Continuous Airflow

The compact electric pump delivers an adjustable pressure range of 35–130 mmHg with an airflow output of 6–7 L/min. Pressure settings can be customized to accommodate individual comfort and care requirements.

Comfortable Full-Length Tubular Mattress

Constructed from durable latex-free PVC, the inflatable mattress measures 32" × 78" × 3.3" when inflated, providing full-body support for standard-sized beds while evenly distributing pressure during extended use.

Designed for Long-Term Care Environments

Supporting users up to 300 lbs, the alternating pressure system is suited for home healthcare, rehabilitation, hospice, and long-term care environments where continuous pressure redistribution is required for patients with limited mobility.

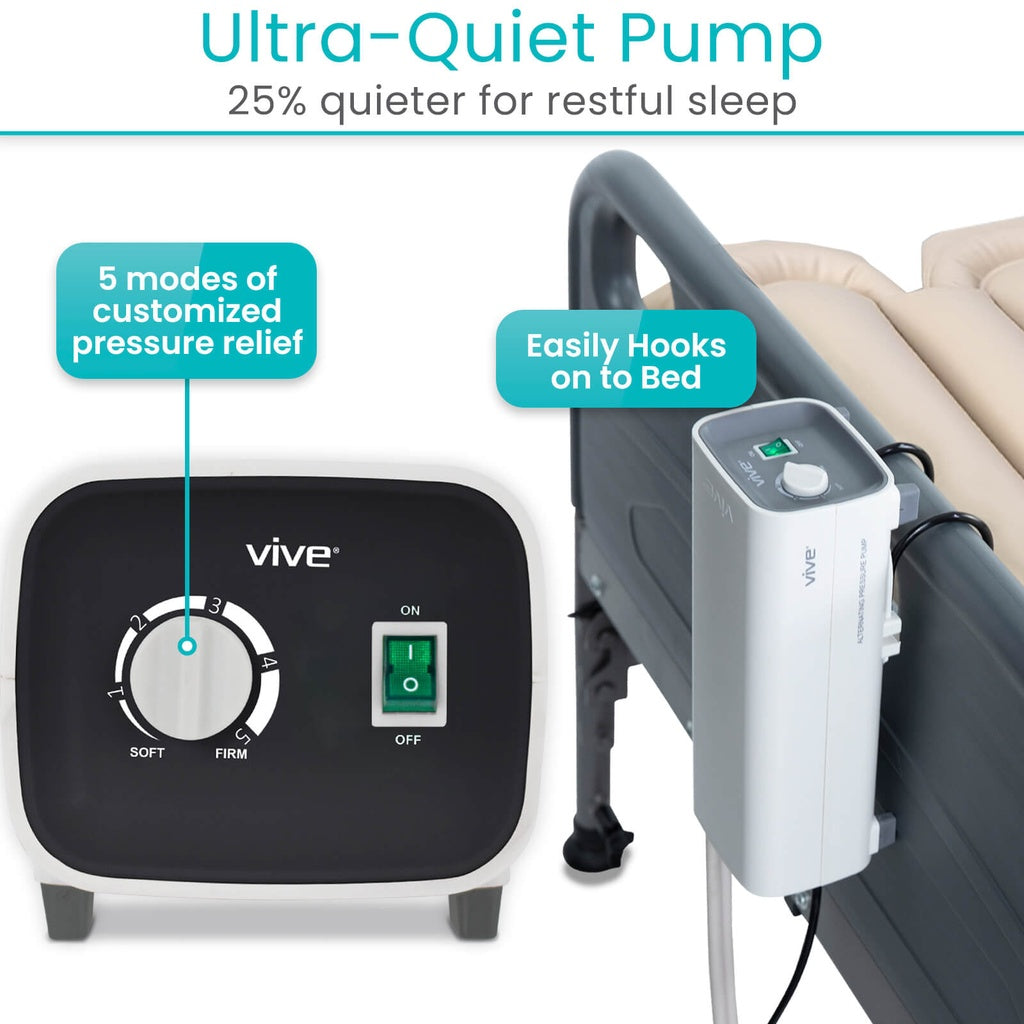

Quiet, Easy-to-Operate System

The pump operates automatically once connected, continuously alternating pressure without manual intervention. Simple controls allow caregivers to adjust pressure levels while the automatic six-minute cycle maintains uninterrupted operation.

Product Specifications

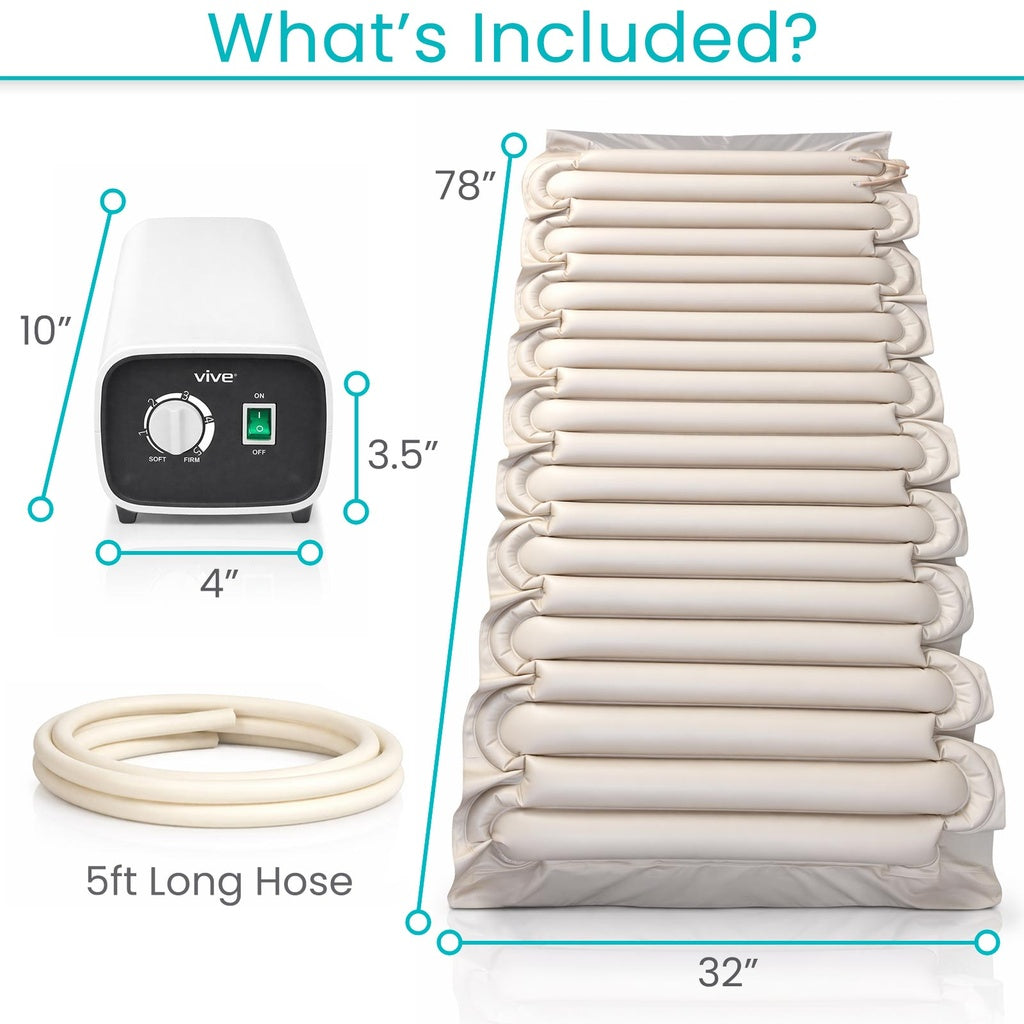

What’s Included:

• 1x Tube Alternating Pressure Pad
• 1x Inflation Tube
• 1x Alternating Pressure Pump
• 1x Patch Kit

Dimensions:

• Inflated: 78" × 32" × 3.3" (L × W × H)
• Deflated: 100.75" × 32.75" × 0.04" / 1 mm (L × W × H)

Weight:

• Pad: 4.97 lbs
• Pump: 2.65 lbs
• Combined: 7.62 lbs

Weight Capacity: 300 lbs

Color: Beige

Materials: PVC — Latex-free

Pump Specifications:

• Alternating Cycle Interval: 6 minutes
• Air Output: 6–7 L/min
• Adjustable Pressure Range: 35–130 mmHg
• Power Supply: 110–120V AC
• Protection Against Class II Electric Shock

Operating Environment:

• Operating Temperature: 32°F–104°F (0°C–40°C)
• Relative Humidity: 30%–75%

Therapeutic Uses

• Pressure injury (bedsore) prevention and management
• Continuous pressure redistribution for limited-mobility individuals
• Extended bed rest support during injury, illness, or surgical recovery
• Home care, hospice, rehabilitation, and long-term care environments

Care Instructions

• Clean the mattress and air hoses with a soft cloth using mild detergent or an approved surface disinfectant
• Do not use corrosive cleaning products, industrial degreasers, or acetic solvents
• Keep away from sharp objects that could puncture the mattress
• Do not attempt to open the pump housing — risk of electric shock
• Keep the system away from open flames and heat sources
• Allow all components to dry completely before storage

Warranty

• Pump: 1-Year Warranty
