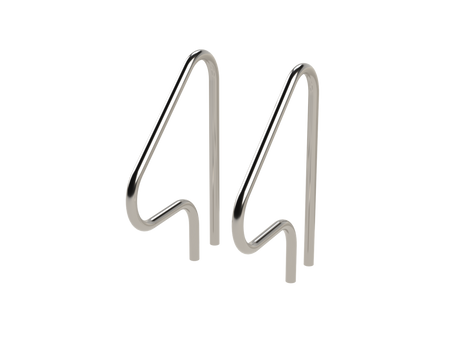

TruPro Figure 4 Handrail by Aqua Creek provides a stable, space-saving handhold for pool access. Its deck-mounted design keeps the swim zone clear while extending over the pool edge for secure handhold placement. The Figure 4 shape follows a smooth, intuitive form, and the corrosion-resistant stainless steel construction is suited to residential and commercial pool settings.
Stainless steel construction supports reliable performance in pool environments.
A marine-grade stainless option is available for saltwater or heavily chlorinated conditions.

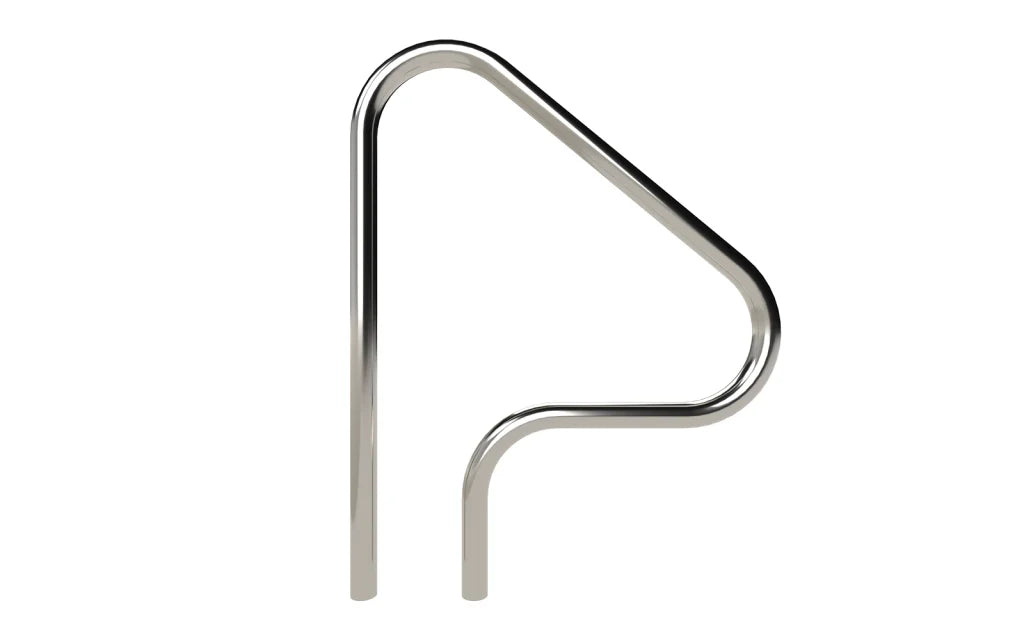

The Figure 4 configuration offers a sturdy handhold for pool entry and exit.

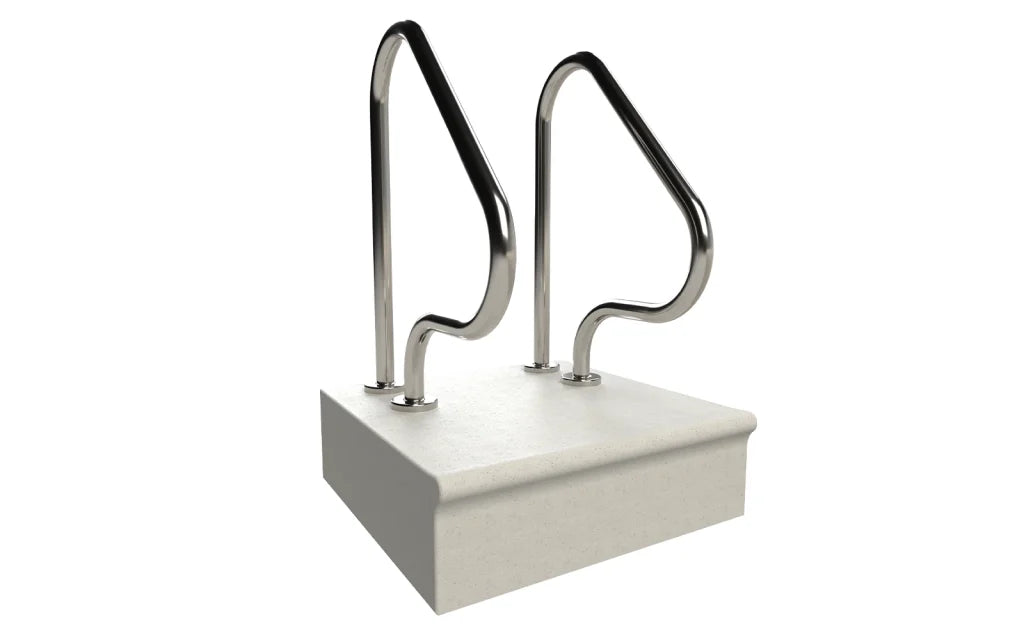

The handrail mounts on the deck and extends over the pool edge, helping keep the swim zone clear.
ADA-compliant installation is available when the handrail is installed with the specified anchors.
The polished finish provides a sleek appearance and supports easy cleaning.
| Specification | Details |
|---|---|
| Product type | Figure 4 pool grab rail |
| Mounting | Deck-mounted |
| Setback options | 26.00 inches and 30.00 inches |
| Outside diameter options | 1.50 inches and 1.90 inches |
| Wall thickness options | 0.065 inch, 0.109 inch, and 0.120 inch |
| Material options | 304 stainless steel and 316 stainless steel |
| Quantity | Sold in pairs |
| Anchors and escutcheons | Sold separately |
| Part number | Configuration |
|---|---|
| TGR-F426-461 | 26.00-inch setback, 1.50-inch OD x 0.120-inch wall, 316LSS |
| TGR-F426-141 | 26.00-inch setback, 1.90-inch OD x 0.065-inch wall, 304LSS |
| TGR-F426-241 | 26.00-inch setback, 1.90-inch OD x 0.109-inch wall, 304LSS |
| TGR-F430-461 | 30.00-inch setback, 1.50-inch OD x 0.120-inch wall, 316LSS |
| TGR-F430-141 | 30.00-inch setback, 1.90-inch OD x 0.065-inch wall, 304LSS |
| TGR-F430-241 | 30.00-inch setback, 1.90-inch OD x 0.109-inch wall, 304LSS |
