DISCONTINUED - PASSPORT® Vertical Platform Lifts by EZ-ACCESS®

Product Description

TEMPORARILY UNAVAILABLE.  For Pre-orders please call customer service for current estimated date of production.

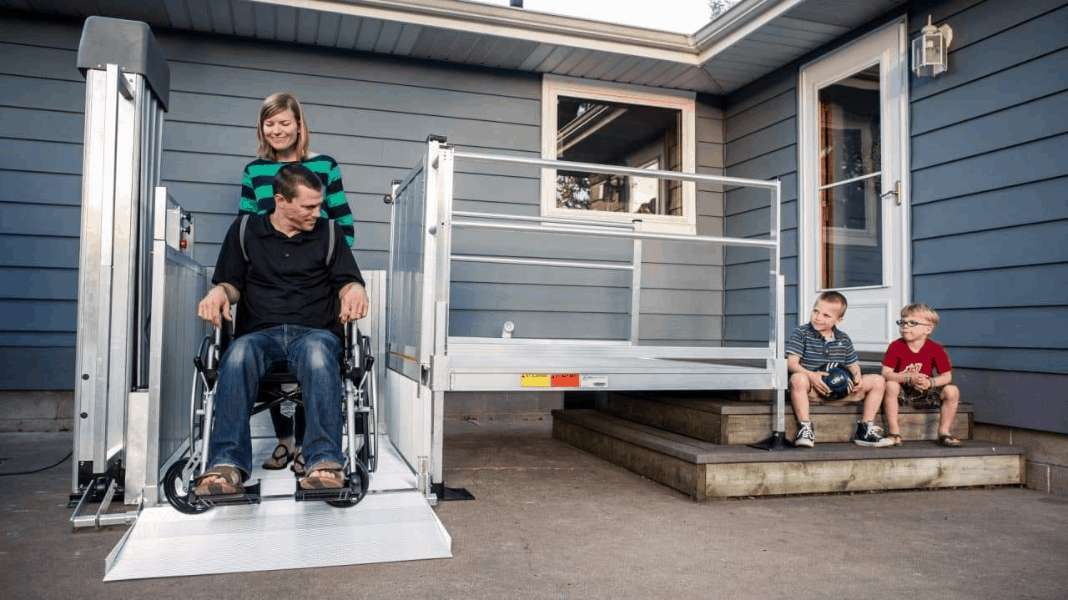

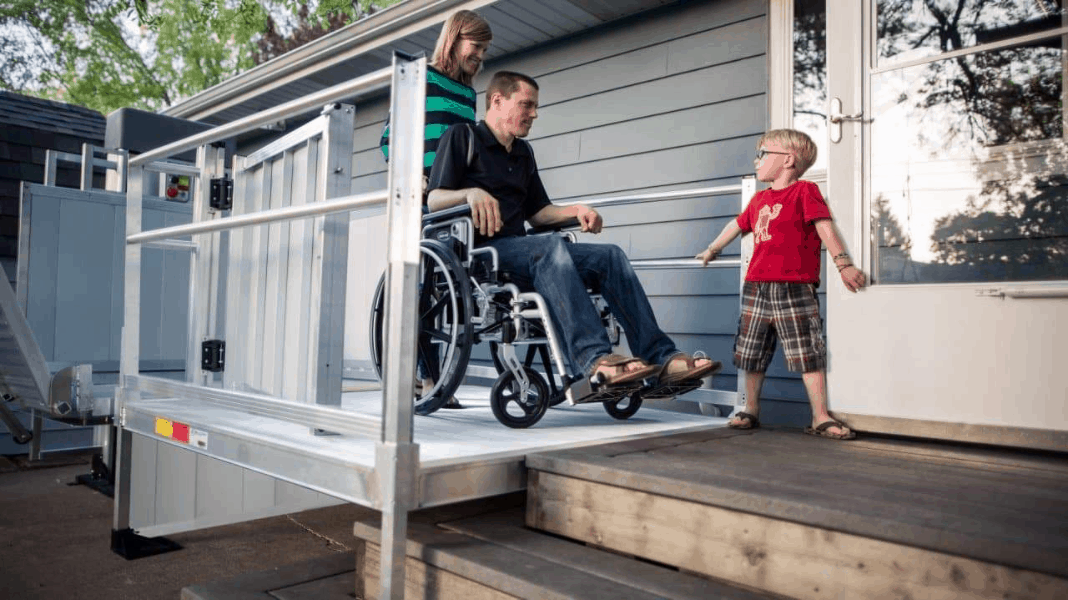

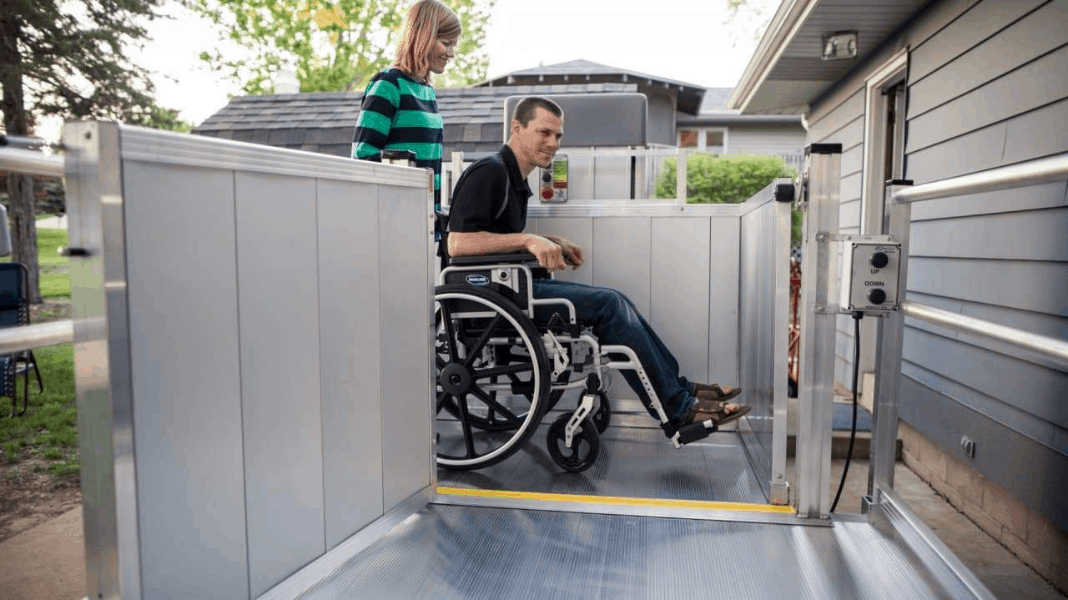

The PASSPORT® Vertical Platform Lift offers a great alternative to ramps in elevated where it's challenging to provide wheelchair access. This compact platform lift moves vertically to heights from 44” to 72”, giving users with limited mobility, convenient access to porches, decks, stages, or other elevations.

The PASSPORT® Vertical Platform Lift is entirely made of aluminum making it the lightest vertical platform lift in the market that is durable enough to withstand everyday use and harsh outdoor conditions.  The PASSPORT® Vertical Platform Lift raises at 10 feet per minute.

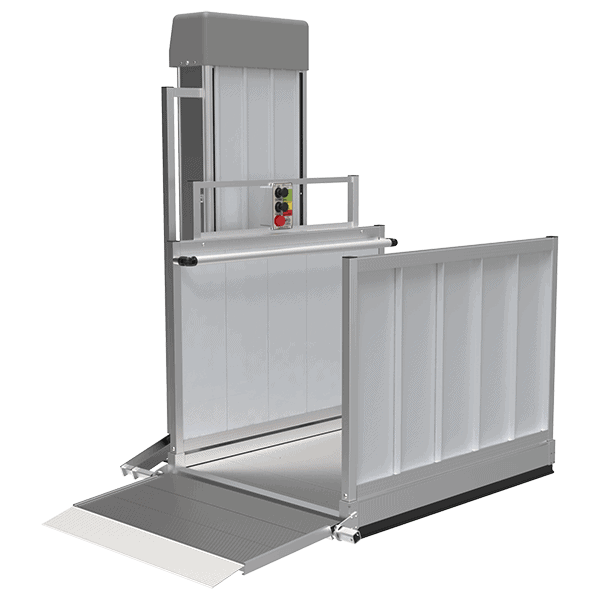

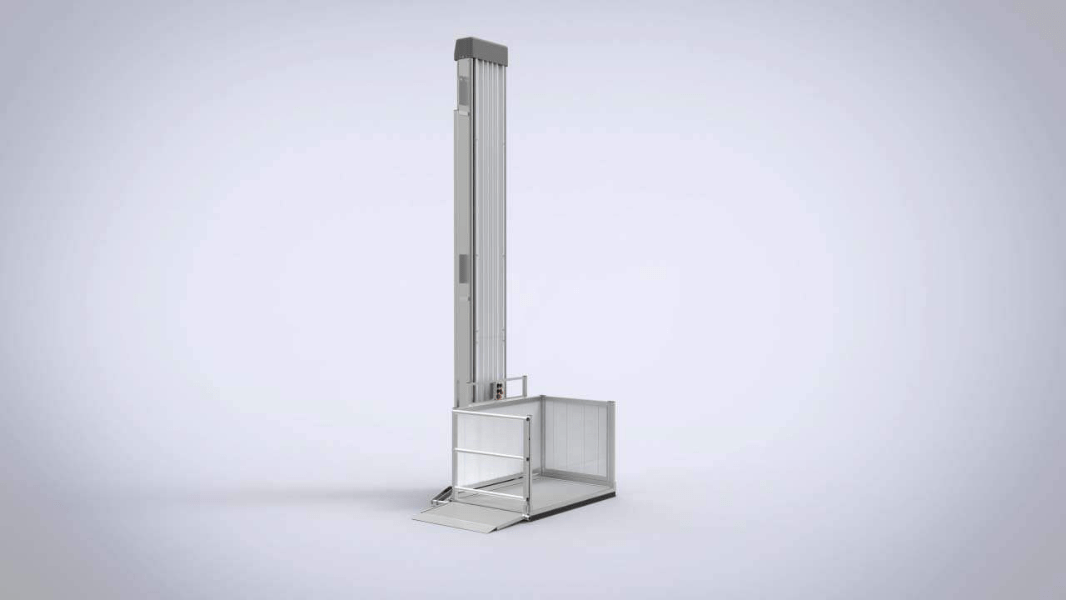

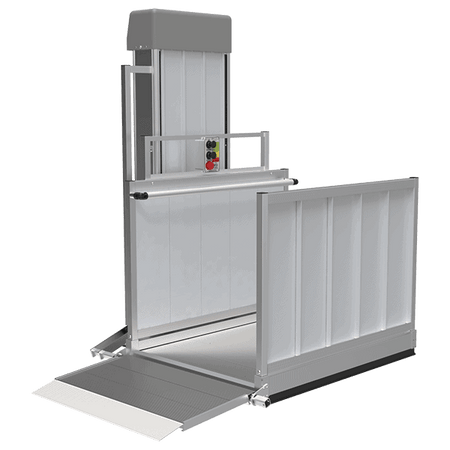

The PASSPORT® Vertical Platform Lift comes standard with either straight access or turn access to choose from depending on your needs. Both access types are equipped with a self-adjusting transition plate to accommodate soft or uneven surfaces for flawless operation of the lift.

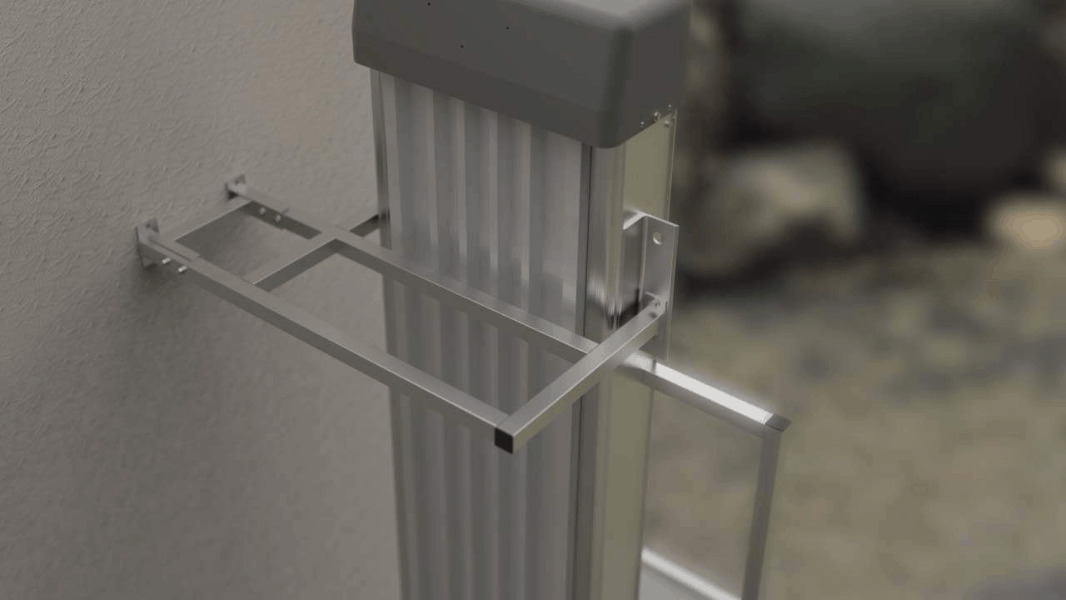

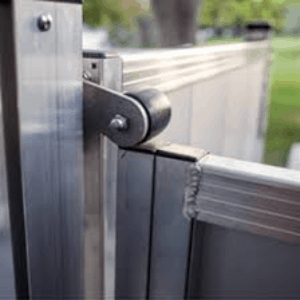

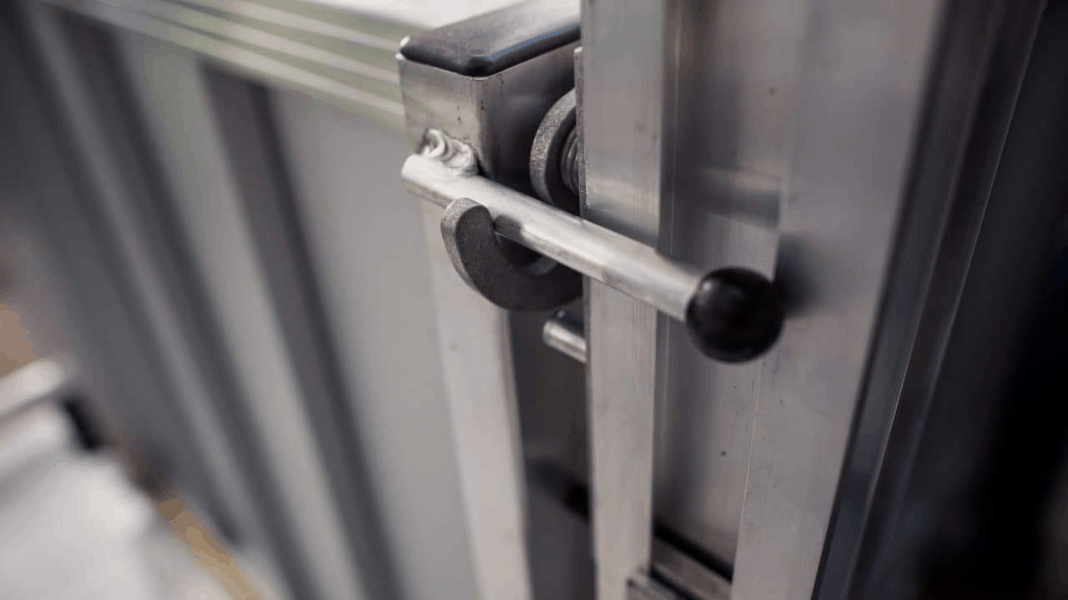

For maximum safety, while lifting, the entry ramp folds up once the user is on the platform. The PASSPORT® Vertical Platform Lift also offers optional, add-on safety features like a platform safety rail and an Interlock. There is also an option top landing gates that may be required by your local building codes. This gate utilizes a magnetic switch preventing it from opening when the lift is not in place.  To avoid accidents, the undercarriage of the lift is equipped with a safety pan that prevents the lift from lowering when it detects any obstruction. There are available optional weather guards to protect the pan from debris.

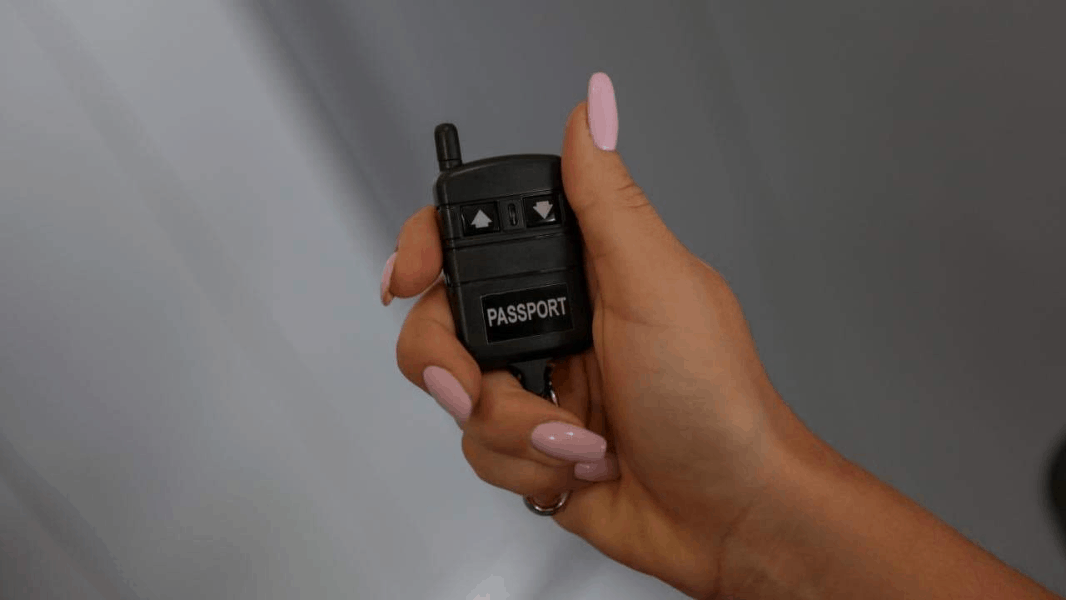

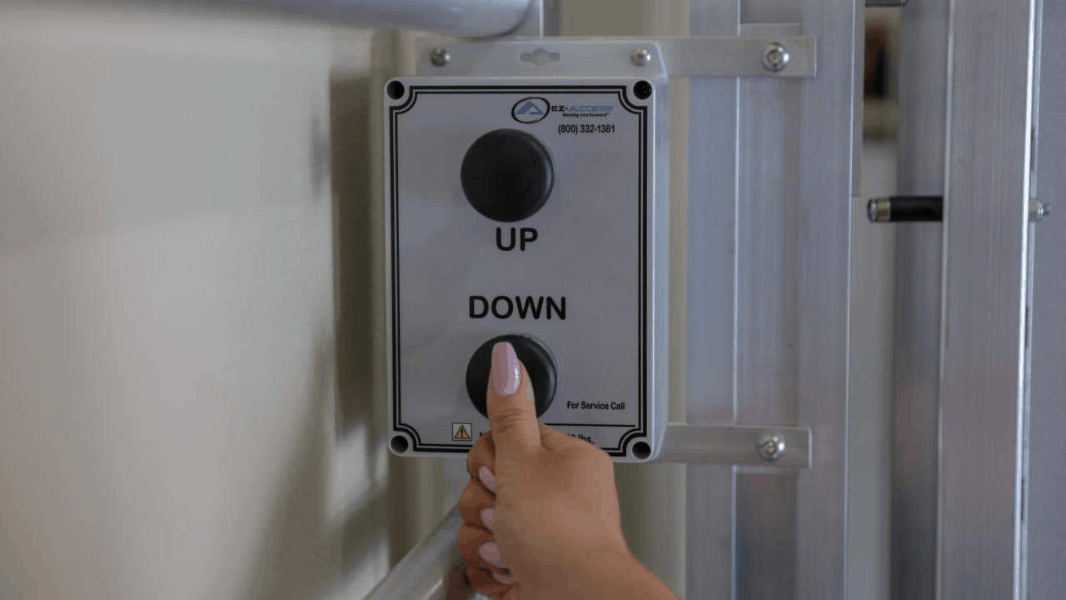

The placement of the control box for the PASSPORT® Vertical Platform Lift can be customized to your preferences. It is made user-friendly with easy to press mushroom-head designed buttons; and a simple, troubleshooting pad with LED indicator lights for easier monitoring of issues. There's also an option for wireless call-send controls allowing the PASSPORT® Vertical Platform Lift to be controlled by your caregiver outside of the lift.

2-yr Warranty	FREE Shipping
Lowest Price Guarantee	30-day Return Policy

Features

• ETL Certified:
  The PASSPORT has been tested and approved by a nationally accredited testing laboratory, assuring continued compliance with the applicable regulatory and safety standards throughout North America. The ETL Certification Mark is recognized and accepted proof of third-party inspection, testing, and certification.
• Safety:
  Undercarriage Platform Safety Pan with obstruction detector takes less than 15 pounds of pressure to stop lift. The lift will still be operational in the upward direction, but the object or obstruction must be cleared to resume downward travel.
• Control Box:

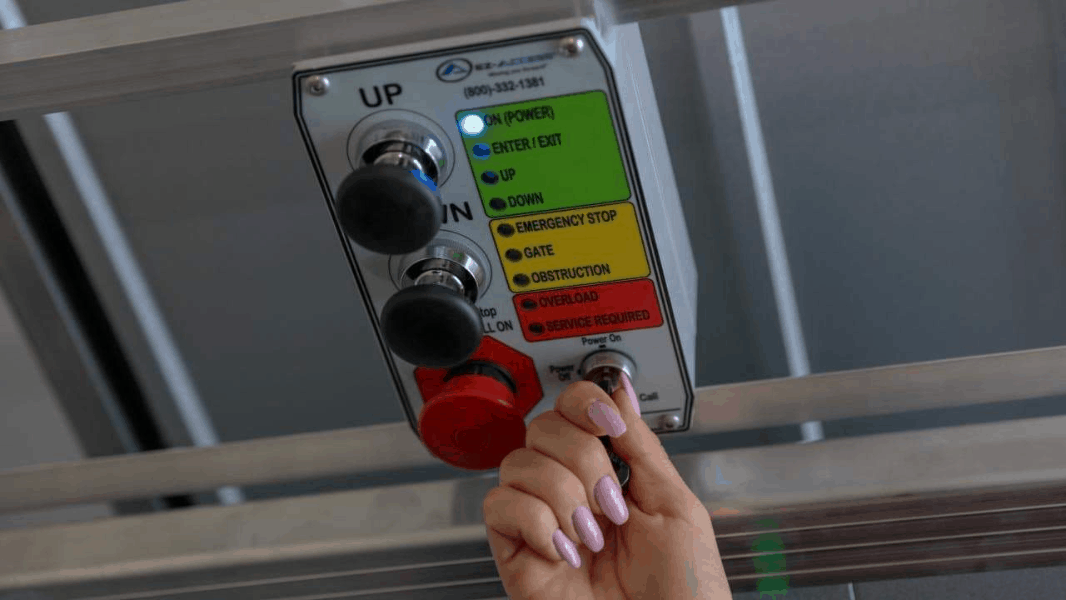

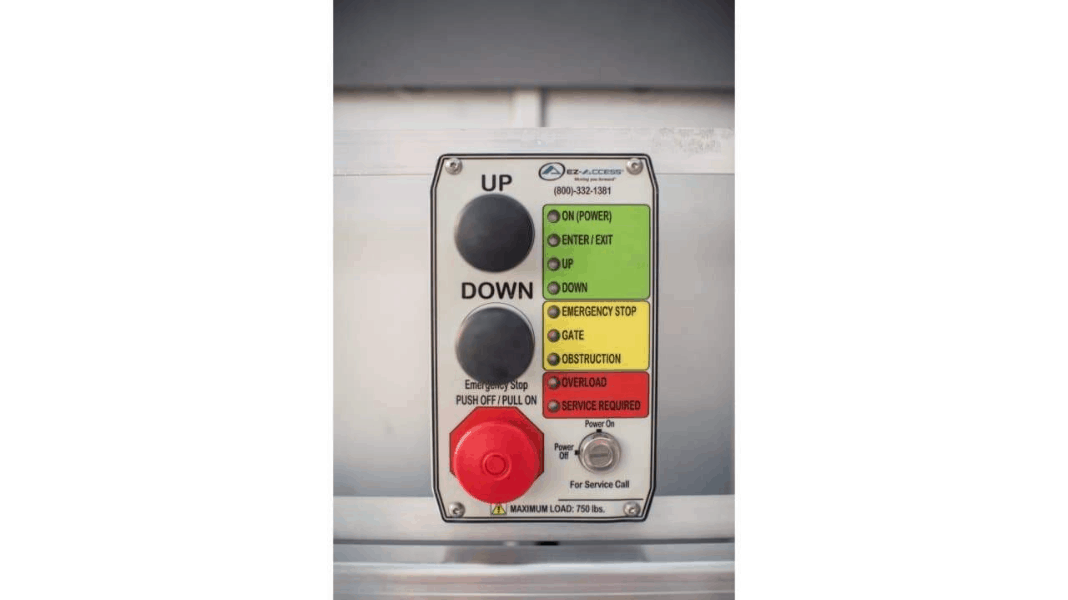

  Multi-positional with the keyed operation. It also features continuous, large, low pressure, mushroom head control switches (including emergency stop) that are easy to use, regardless of motor skills.
• Diagnostics:
  High-visibility LED indicator lights on the control box for easy troubleshooting and reduced service calls.
• Universal Access:

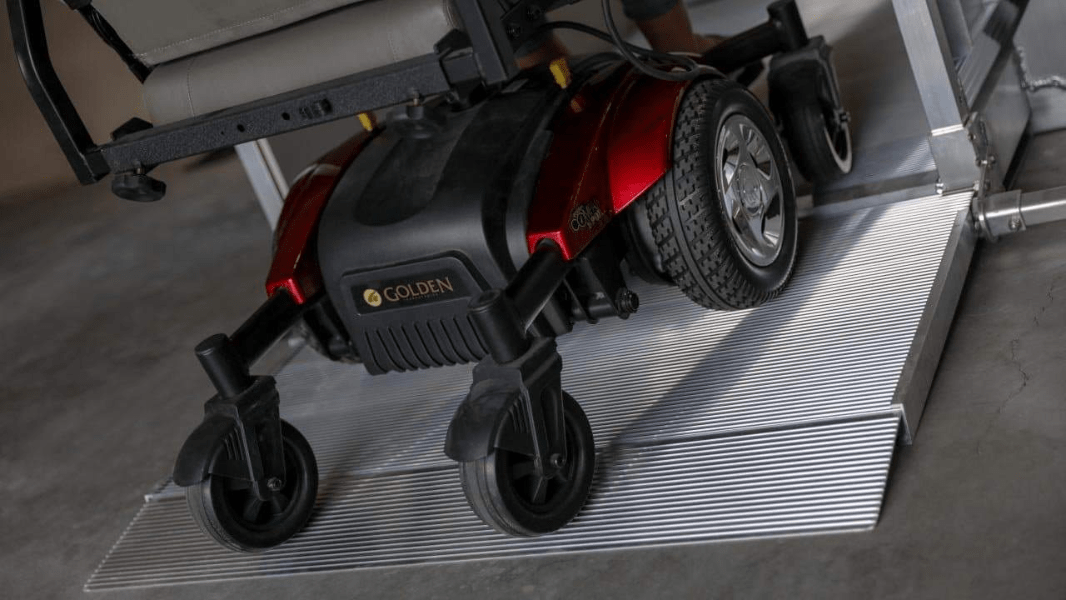

  The self-actuating 24-inch entry ramp can be assembled on either end of the platform allowing access to the lift from either side. When the lift rises, the ramp folds upward to provide a safety measure, preventing accidental travel off the platform.
• Adaptable Unit:
  Multiple lifting heights and platform configurations to fit your unique requirements.
• Lightest Platform Lift:
  Known on the market as the lightest residential platform lift available.
• Plug-N-Play Wiring Technology:
  The platform tower and gate are both prewired with automotive-style connectors that are waterproof and will not corrode. Our Plug-N-Play wiring technology makes the PASSPORT user-friendly, low-maintenance, and the preferred lift of technicians and installers.

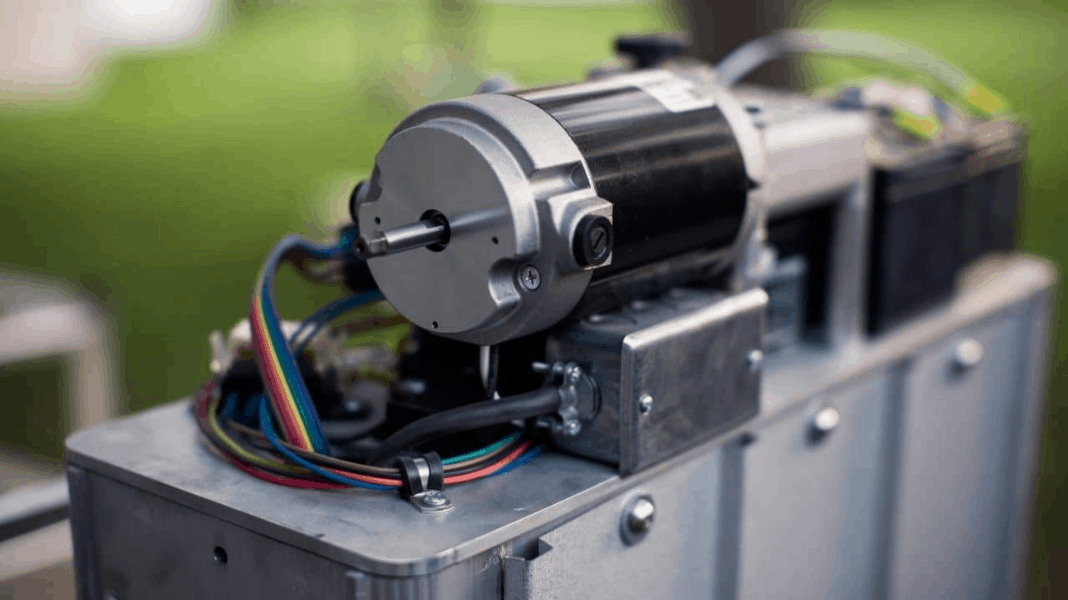

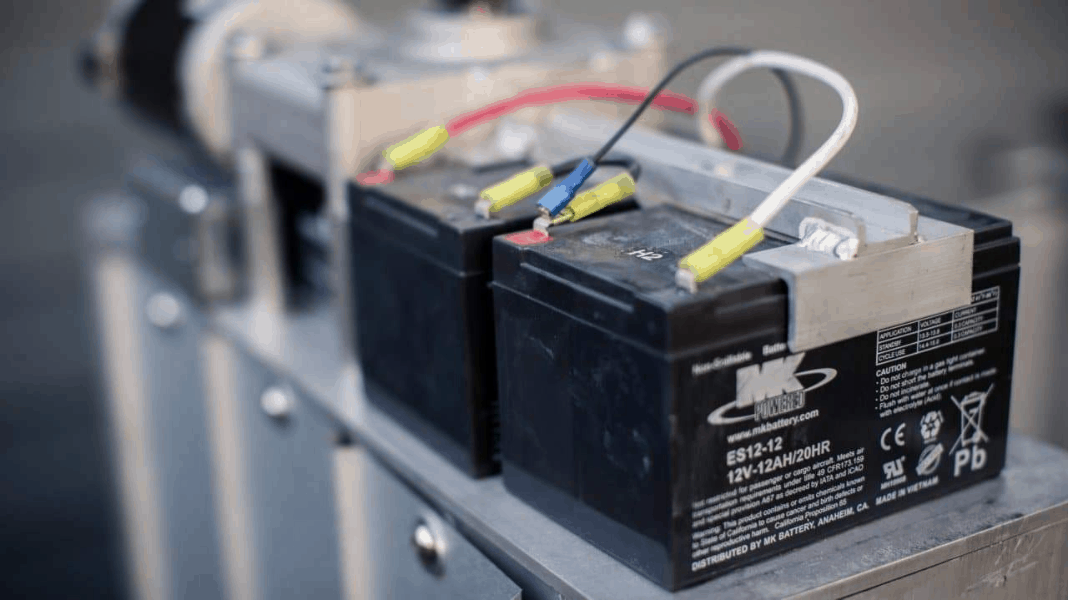

• DC-Powered:
  The PASSPORT is fully DC powered. On battery power alone, the lift can complete approximately 20 complete cycles, even fully-loaded.
• Made in the USA

Videos

Why We Like It

• Lightest Vertical Platform lift weighing made with aluminum.
• Impressive weight capacity of up to 750 lbs.

• Equipped with self-adjusting transition plate ensuring smooth operation even on uneven surfaces.
• Accommodating to most home entry layouts due to straight and turn access options.

FAQs

Can the lift be used outdoors?
Yes, the Vertical Platform Lift is designed to stand up to the environment.

Can this Vertical Platform Lift be used for a commercial application?
This VPL was designed for residential use only.

Specifications

Options

Documents

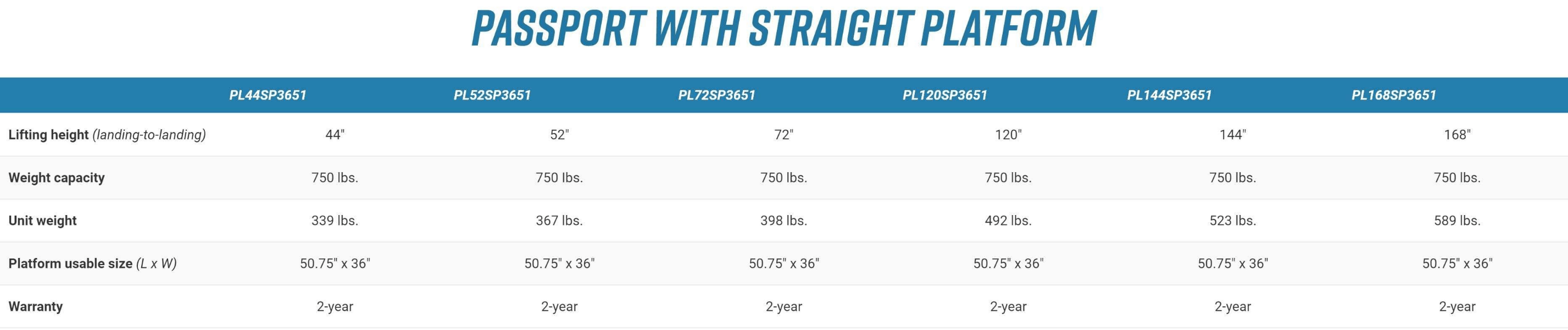

Technical Specifications
