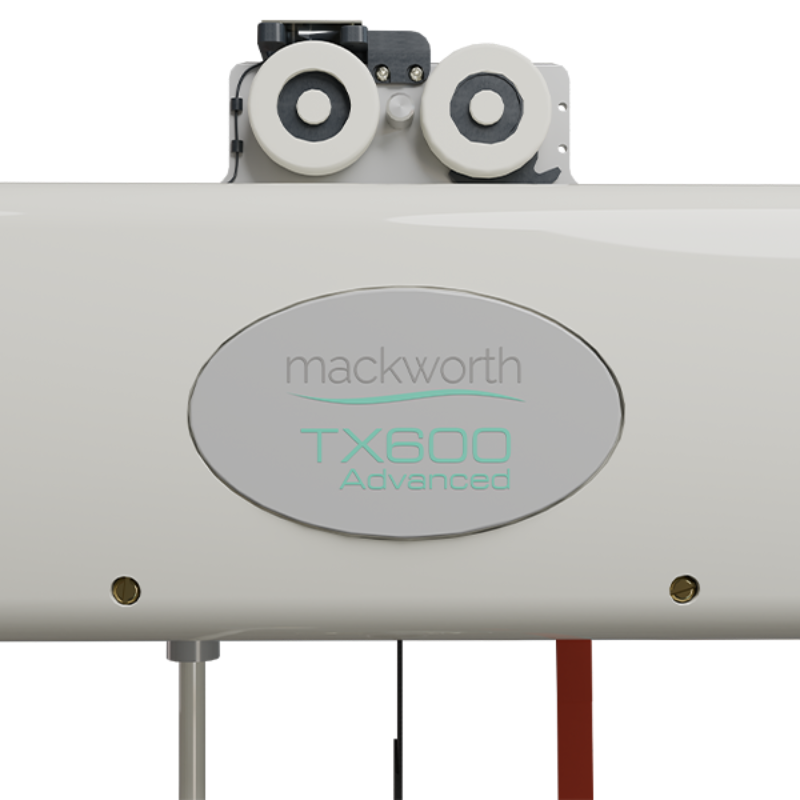

Mackworth TX600 Fixed Ceiling Lift Motor – 600 lb Capacity, Safe & Effortless Transfers, Space-Saving Design
Regular price
$3,398.00
Regular price
Sale
$5,997.00
Sale price
$3,398.00
Couldn't load pickup availability
Secure Shopping Guaranteed
Share this product with your friends or caregiver today
Product Description
Mackworth TX600: Low-Profile, High-Capacity Ceiling Lift for Safe, Dignified Transfers
Mackworth TX600 Fixed Ceiling Lift minimizes caregiver strain while providing safe, dignified transfers—even for bariatric patients—without occupying floor space.
Experience fluid, secure patient transfers with the Mackworth TX600 ceiling lift. Designed for caregivers and mobility-impaired individuals alike, this fixed-track system delivers strength, reliability, and dignity—all while minimizing floor clutter and risk. With a discreet low-profile design and intuitive controls, it's an ideal solution for both clinical and home settings.
 Lowest Price Guarantee |
5-Year Warranty |
| Battery Included |
|
Key Features & Benefits
-
High 600 lb / ~272 kg capacity
Enables safe transfer of bariatric and heavier individuals, offering peace of mind and broad usability. -
Up to ~78.7 in (2000 mm) lift range
Provides generous vertical reach, allowing seamless transitions from beds to chairs, baths, or toilets. -
Smooth, high‑torque motor with optional powered traverse
Ensures quiet, responsive elevation and lateral movement along the ceiling track—enhancing caregiver ease and patient comfort. -
Low-profile, floor‑clearing design
Eliminates trip hazards and maximizes space—perfect for tight or clutter-free environments like bathrooms or wet rooms. -
In-track charging system
Convenient docking ensures lift batteries are continuously refreshed—ready whenever needed. -
Enhanced user dignity and comfort
Ergonomically paired with adjustable slings and carry bar systems to support a tailored, secure fit. -
Safe, compliant, and care‑oriented
Designed for internal installation with clear safety guidelines and optional emergency lowering features.
Specifications
| Lift Motor: | 24 VDC |
| Traverse Motor (optional at time of purchase): | 24 VDC |
| Charger Input: | 100-240V AC 50/60Hz 1.5A |
| Charger Output: | 24 VDC/1.0 A |
| Batteries: | 24 VDC (2x 12 VDC) 5.0 Ah (SLA) |
| Lift Case: | Flame Retardant ABS |
| Lift Case Degree of Protection: | IP21 |
| Handset Degree of Protection: | IP67 |
| Operation: | Handset (Pneumatic) |
| Sound Level: | 54 dB(A) |
| Traverse Speed (SWL) 1, 2, 3, 4: | 1.58 “/s (40.12 mm/s), 3.87 “/s (98.24 mm/s), 5.90 “/s (150.00 mm/s), 7.75 “/s (196.88 mm/s) |
| Traverse Speed (No Weight) 1, 2, 3, 4: | 1.79 “/s (45.48 mm/s), 4.11 “/s (104.34 mm/s), 6.23 “/s (158.32 mm/s), 7.87 “/s (200.00 mm/s) |
| Traverse Stopping Distances (SWL) 1, 2, 3, 4: | 0.24″ (6 mm), 1.22″ (31 mm), 2.28″ (58 mm), 3.31″ (84 mm) |
| Traverse Stopping Distances (No Weight) 1, 2, 3, 4: | 0.24″ (6 mm), 1.22″ (31 mm), 2.36″ (60 mm), 3.50″ (89 mm) |
| Traverse Duty Cycle: | 25% use, 75% rest (90 seconds use, 270 seconds rest) |
| Lifting Speed (SWL): | 1.16 “/s (29.52 mm/s) |
| Lifting Speed (No Weight): | 2.54 “/s (64.52 mm/s) |
| Lowering Speed (SWL): | 2.14 “/s (54.48 mm/s) |
| Lowering Speed (No Weight): | 2.39 “/s (60.75 mm/s) |
| Stopping Distances Up (SWL): | 0.39″ (10 mm) |
| Stopping Distances Up (No Weight): | 0.94″ (24 mm) |
| Stopping Distances Down (SWL): | 1.54″ (39 mm) |
| Stopping Distance Down (No Weight): | 1.30″ (33 mm) |
| Raising/Lowering Duty Cycle: | 15% use, 85% rest (90 seconds use, 510 seconds rest) |
| Emergency Down Stopping Distance (SWL): | 1.54″ (39 mm) |
| Emergency Down Stopping Distance (No Weight): | 1.38″ (35 mm) |
| Battery Capacity for Raising/Lowering (SWL): | 35 Lifts (Top 500 mm of Lift Tape) |
| Battery Capacity for Raising/Lowering (200 kg / 440 lbs.): | 60 Lifts (Top 500 mm of Lift Tape) |
| Battery Capacity for Raising/Lowering (100 kg / 220 lbs.): | 120 Lifts (Top 500 mm of Lift Tape) |

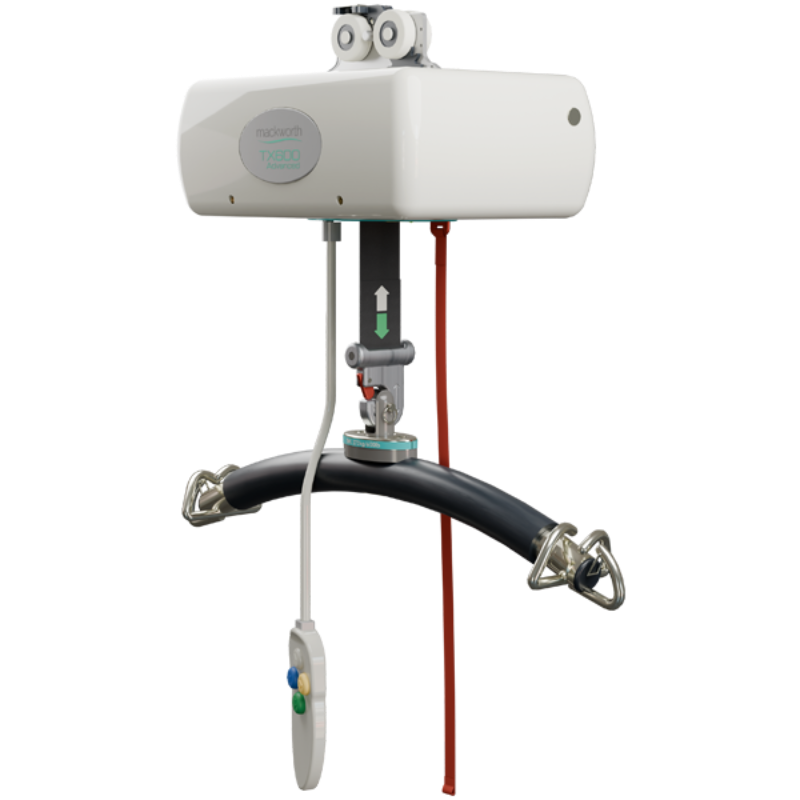

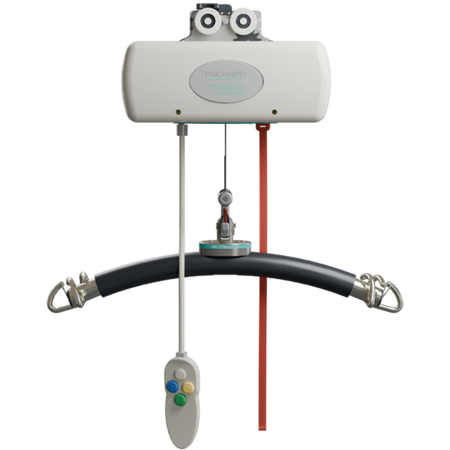

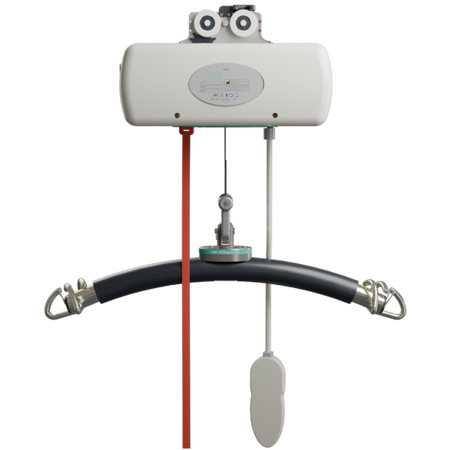

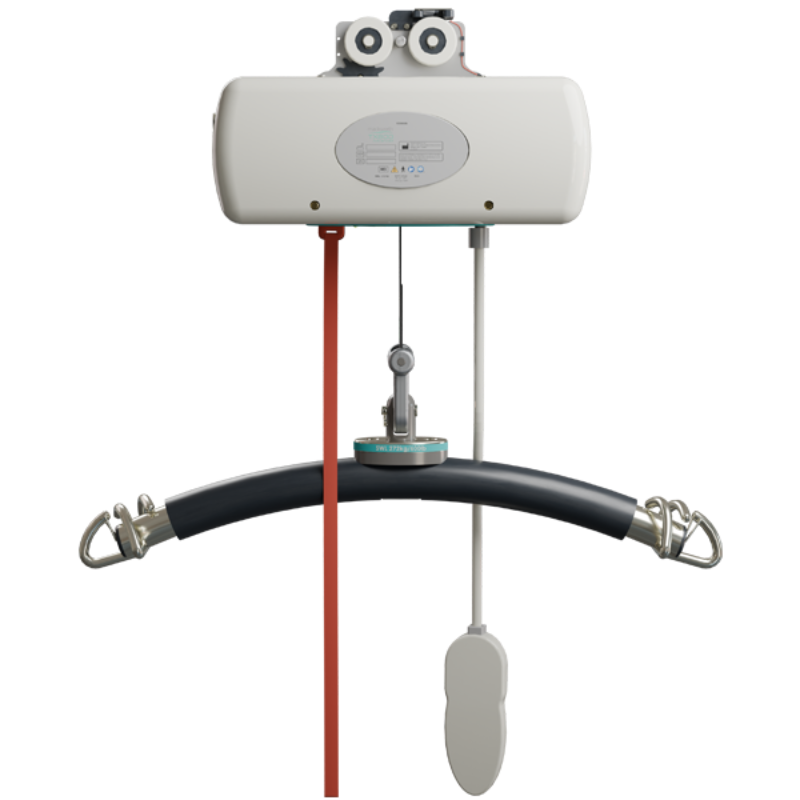

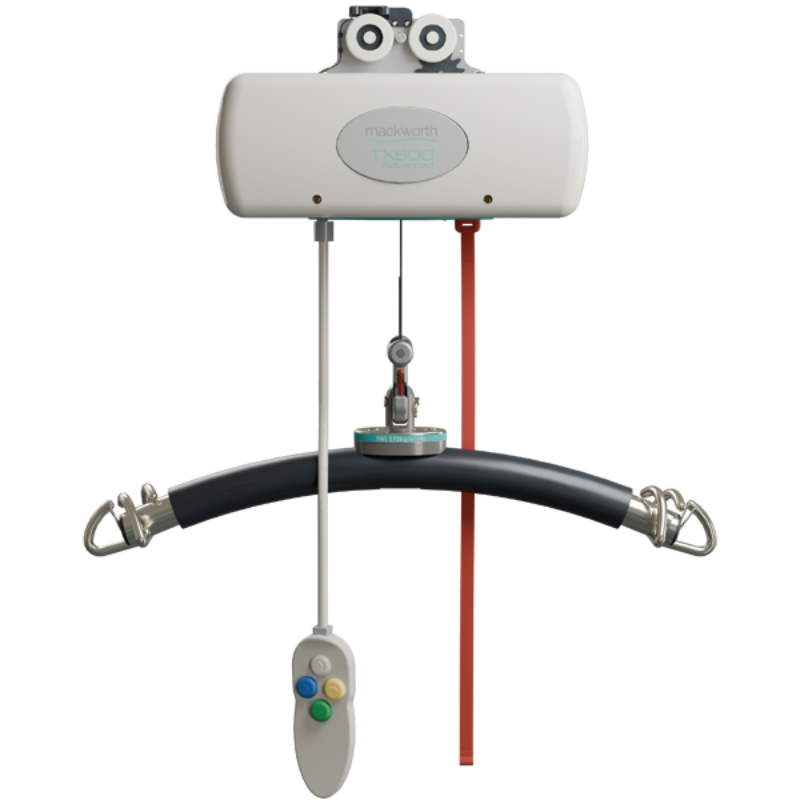

Mackworth TX Lift Components
- TX Lift
- Carry Bar

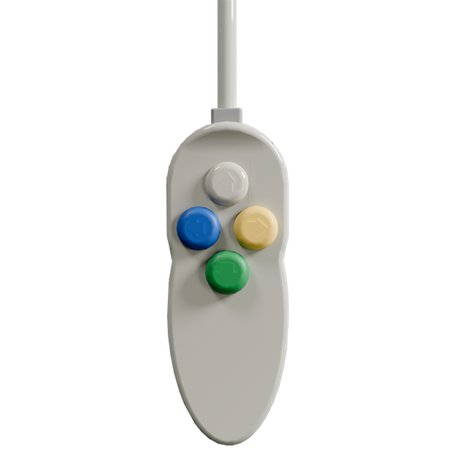

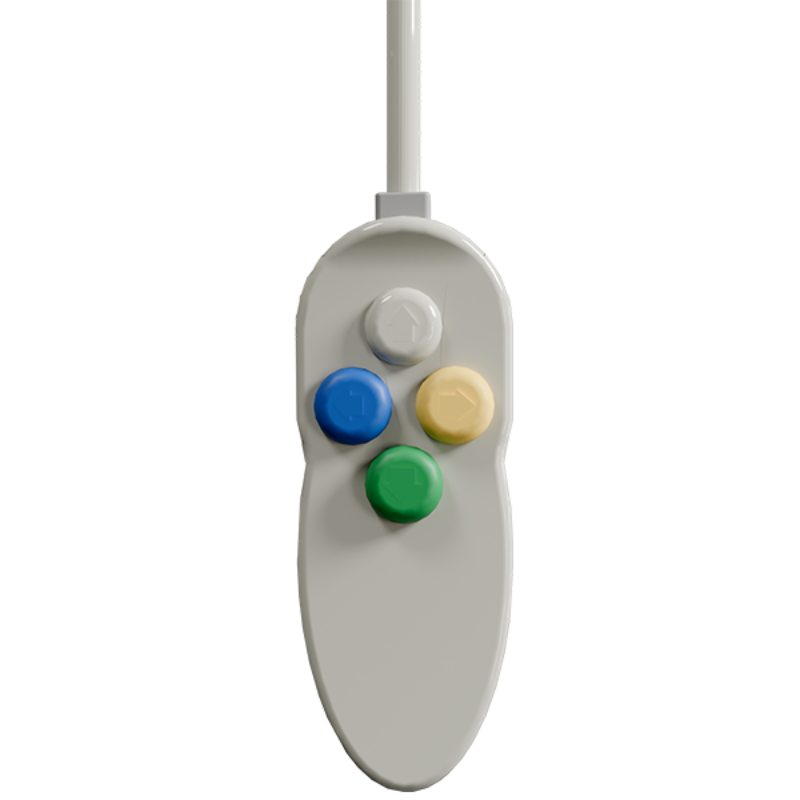

- Handset
- Lift Charger
- Allen Key
- User Guide
Note: Ceiling track and slings are bought separately.
Literature
Mackworth T600 Manual Traverse Ceiling Lift User Guide
Mackworth T600 Manual Traverse Ceiling Lift Set Up Guide
Mackworth T600 Advanced Ceiling Lift User Guide
Mackworth T600 Advanced Set Up Guide
Warranty
5-Year Warranty
Mackworth USA offers a 5-year warranty on its extensive range of products against failure within 60 months from the date of purchase, covering defects in material or workmanship. Products included in the 5-year warranty are:
-
Ceiling Track Lifts
-
Gantry and Track Systems
-
Floor Lifts
12-Month Warranty
Mackworth USA also provides a 12-month warranty on batteries, lift tapes, and other consumables, ensuring customers remain protected.
