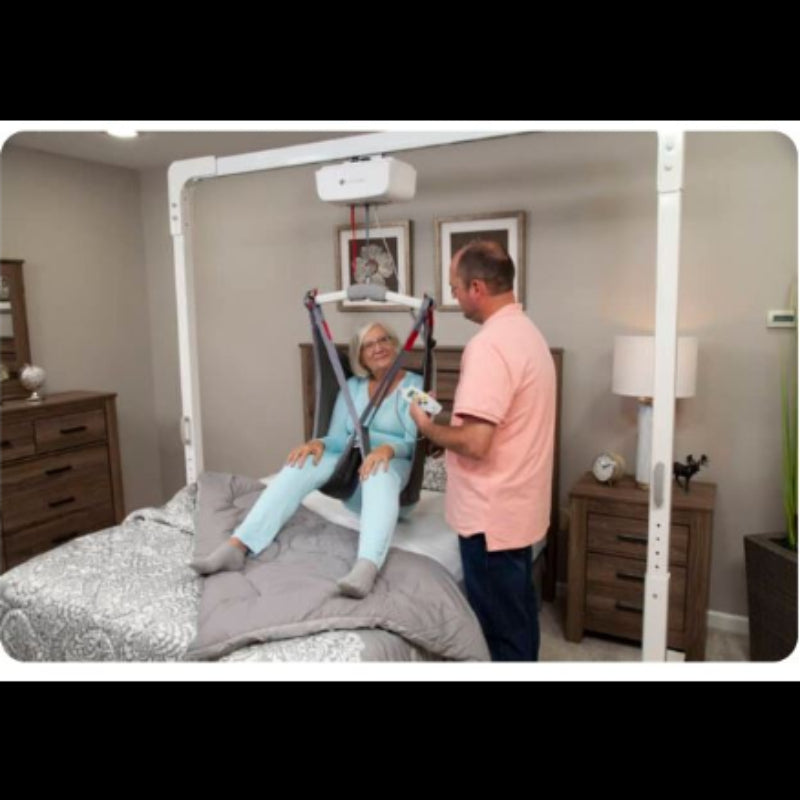

With Castor, you can create flexible lifting solutions that are optimized for each patient and setting. The track is perfectly made for each application’s necessary lifting area. The height can easily be adjusted to seven positions to ensure the perfect lifting range.
- Compact, lightweight design
- Made of aluminum
- Easy to assemble and disassemble
- Seven height positions in 3 in (7.5 cm) increments
- Flexible width (lifting area) and height (lifting range)
- For use with both fixed and portable ceiling lift motors
- Weight capacity: 660 lbs (300 kg)
Material:
Aluminum
Specifications:
Safe Working Load (SWL) 82 in (2080 mm) track: 450 lb (204 kg) 156 in (3690 mm) track: 625 lb (283 kg) 197 in (5000 mm) track: 450 lb (204 kg)
Dimensions (L x W x H) Length, supporting foot: 47.0 in (1190 mm) Width, total: 79–276 in (2000–7010 mm)* Width, between uprights: 82–279 in (2080–7090 mm)* Width, supporting foot: 5.0 in (120 mm) Width, between supporting feet: 80–277 in (2030–7040 mm)* Height, total: 79–96 in (2000–2430 mm) Height, adjustable: 7 height positions in 3 in (76 mm) increments
Weight 82 in (2080 mm) track: 97 lb (44 kg) 156 in (3690 mm) track: 149 lb (68 kg) 197 in (5000 mm) track: 162 lb (73 kg) *Depending on rail length
Lifting Range (W x H) Width: 88–285 in (2230–7240 mm)* Height: 76–89 in (1930–2260 mm)
Product Code:
343102 156 in (3960 mm) track plus
343101 197 in (5000 mm) track plus
Literature:
Castor Free Standing Track Brochure - English
