The Mobilift CX Portable Manual Platform Wheelchair Lift

In stock
SKU: MobiliftCX
Regular price $11,375.00
Title

Secure Shopping Guaranteed

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Share this product with your friends or caregiver today

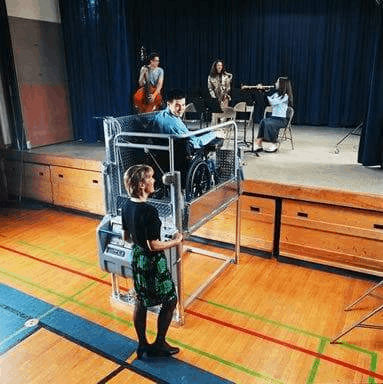

The Mobilift CX is a multipurpose, portable wheelchair lift that provides access to school stages, out-door bleachers an elevated platforms. Over 1000 units are used in schools, colleges, churches, auditoriums and historic buildings to provide handicapped access. The lift is ideal where structural modifications are impractical, unattractive, too costly or prohibited for historic reasons.  Unlike other vertical platform lifts, the Mobilift CX is manually powered making it easy to use and highly portable. The absence of batteries, hydraulic and electric components make the lift extremely reliable and virtually maintenance free.  Mobilifts can be customized to accommodate unique situations – minimizing the chance that you will have to incur costly structural modifications to your facility. With its reasonable purchase price, the Mobilift is an economical way to make your location handicapped accessible – instantly!





Features

Fast and Easy to Use

  • Easy to operate controls-no special training or expertise is required.
  • Manual operation requires just 5 lbs. of crank force to lift a 150 pound load and 11 lbs. of crank force to lift 300 lbs.
  • Typical elevation time to maximum height of 60” is 20 seconds.
  • Pictogram decals clearly depict the unit’s operating instructions.

Mobile

  • 4 lbs. of pressure is all that is required to start a Mobilift moving on a hard level surface – as easy as moving a shopping cart.
  • Self sufficient – no power is required.
  • Mobilifts weigh approximately 268 pounds and can be transported in the back of any size pickup truck.

Economical

  • Low acquisition cost.
  • Extremely low maintenance cost.
  • Permanent installation or structural modifications are not required.

Safe

  • Mobilifts have a lifting capacity of 600 lbs.
  • All units are factory load tested to 3000 lbs as part of our extensive quality assurance program.
  • Proven safe - more than 1000 units in service over the past 15 years.
  • Locking cable included to prevent unauthorized use.
  • Moveable to reduce exposure to vandalism (vandal resistant shelter available as an option).

Customizable

  • Bridge ramps of varying lengths are available to reach over stairs and other obstacles.
  • Left hand side cranking is an option.
  • Right hand side loading is available for unique applications.
Videos

Overall Operation



Application in a school

 Movement on grass and truch transport

Easy as a shopping cart

Extended bridge ramp over stairs

Specifications


The Mobilift CX is manufactured to exact tolerances using aluminum and stainless steel. Critical components have been tested successfully for extreme weather performance from -50° to +130°F to ensure low-cost, trouble-free use.

The lift conforms to stringent safety requirements with each lift factory load tested to 3000 lbs. – five times the rated load.

Typical lifting time: 20 seconds to maximum height of 60”

Maximum lifting height: 60” (1.52m)
Crank force required: 5 lbs to lift 150 lbs., 11 lbs. To lift 300 lbs.
Capacity: 600 lbs (275kg)
Lift weight: 265 lbs. (120 kg)
Lift height: 66” (1.67m)
Lift width: 37.5” (0.95m)
Length: 72” (1.83m)
Platform size: 34” X 56” (0.86m X 1.42m)

Accommodates a large wheelchair or scooter

Bridge ramp size: 20”L X 32”W (0.51m X 0.81m)

Note: Other ramp sizes are available

Options
  • Weather protection:
    • Enclosed shed
    • Open mesh shed
    • Tarp shed
  • Loading from right side
  • Stair bumper
  • Oversize platform
  • Narrow-doorway option
  • Left-hand side cranking
  • Mobile bridge ramp
  • Powder coated main structure
  • Choice of ramp lengths:
    • 10” (0.25 m)
    • 30” (0.76 m)
    • 40” (1.0 m)
    • 50” (1.27 m)
    • 60” (1.52 m)
Warranty & Returns

Every Mobilift carries a 2-year warranty from the date of invoice. The lift is also covered by after-sales support and assistance. Parts can generally be shipped within 48 hours.

We will accept returns of undamaged lifts within 45 days of our date of shipping. The customer is responsible for return shipping costs and a 20% restocking fee applies.

Literature

Info Pack

Manual

Height and Color Options

Extended Reach Bridge Ramp

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Mark Andrews

The Mobilift CX Portable Manual Platform Wheelchair Lift

M
Manager, Procurement and Facilities, Rocky Mountaineer
Adaptive Engineering Inc Provides World-Class Wheelchair Access to Passenger Rail Service

Adaptive Engineering has provided Rocky Mountaineer with products that enable us to seamlessly board our mobility challenged guests onto our train. As a world-class luxury travel provider, we have a reputation to maintain in terms of quality, customer service and safety, all of which we get when working with Adaptive Engineering and utilizing the Mobilift TX product.

C
Courtney Inman
Mobilift and Adaptive Engineering Inc Standout in Streetcar Access Application

The Nelson Electric Tramway Society, operators of a historic 110-year old Streetcar, have contracted Adaptive Engineering to supply 2 fully operational Mobilifts for use in Nelson. These lifts allow our Society to accommodate a segment of our Society with mobility issues. I would not hesitate to recommend their services and products to other organizations needing their expertise.

P
Project Manager, University of Virginia
Accessing Historic Buildings is Easy with the Mobilift – No Power Required!

Our University has many historical buildings which were not designed or entry by the disabled. The lift is very mobile, easy to position, easy to operate and flexible. Operators need minimum training and the device is low in maintenance time and cost. We have used the lift in garden areas where electrical sources are non-existent.

P
Principal, J.L. Bernstein School
Mobilift Solves Temporary Access Problem for School

“The Mobilift manual wheelchair lift is exactly what we needed. It is easy to use and move around, yet once the mechanism is set in place, it is solid and stationary. We have been pleased in using it to get our wheelchair students onto the stage in our auditorium. When we do not use it, we wheel it into a corner where it is out of the way. I would recommend this unit for other schools.”
