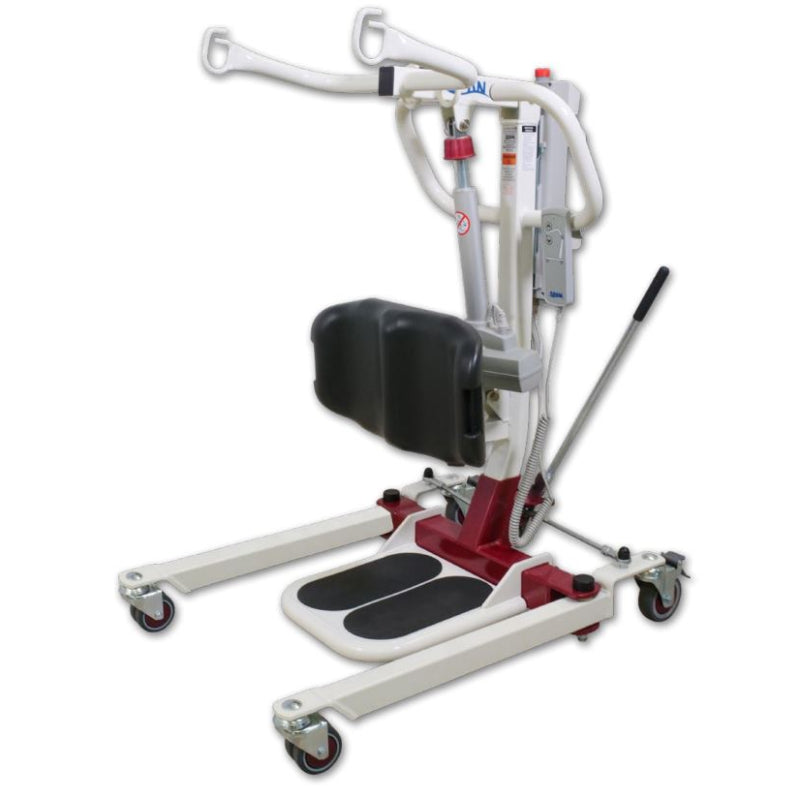

F500S Powered Sit-to-Stand Patient Lift – Compact Power for Safe and Efficient Transfers
The F500S Powered Sit-to-Stand Patient Lift is a reliable solution for safe and efficient transfers between beds, chairs, and commodes. Designed for everyday clinical and home care use, it supports proper patient positioning while reducing physical strain on caregivers.
With its compact footprint and easy maneuverability, the F500S performs exceptionally well in tight spaces and varied care environments. Combining safety, simplicity, and long-term value, it’s an essential mobility aid for facilities and homes seeking dependable powered transfer support without sacrificing ease of use or affordability.
Care Flexibility
Underbed clearance allows use with
most low beds.
Safe and Reliable
Redundant controls; overload protection; emergency lowering; 3-year frame warranty
Easy operation
Simple charging; audible/visual indicators; locking rear casters
Packed with Features
- 500 lb. (228 kg) safe working load
- Easy base width adjustment with locked position; accommodates chairs and commodes
- Wide non-slip footplate provides stable base for transfer
- Redundant operation via control unit, allowing use if pendant is lost or damaged
- Overload protection with visual/audible alert, halts lifting when capacity is exceeded
- Manual emergency lowering for added safety
- Quick-release battery can be charged via charging cradle (optional), or via plug-in charger (included) for charging in place.
- Backlit LCD display during operation for ease of viewing.
- Simple, fast assembly using tools provided.
- Certified to: ISO 10535; IEC/EN/ANSI/AAMI/CAN/CSA-C22.2 60601-1, 60101-1-2, and 60601-1-11; SGS Mark for Safety.
Specifications
Knee Pad Length Extension Range-4.5”
Weight Capacity-500 lb. (228 kg)
Overall Base Length-46.9”
External Base Width (Closed)-26.4”
Internal Leg Width (Open)-39.3”
Upright Mast Height-51.3”
Minimum Lifting Height with Spreader Bar-21.5”
Maximum Lifting Height with Spreader Bar-68.6”
Net Weight-123 lb / 56 kg
Shipping Weight-139 lb / 63 k
Product Codes
F500S-Sit-To-Stand Patient Lift
Accessories
Deluxe Sit-to-Stand Slings:
- Padded design provides superior comfort and skin protection
- Height-adjustable for multi-patient application.
- Chest belt with hook and loop plus buckle for added safety
- Easy application: sits under the arms, glides and slides smoothly.
- Item # D202MEDLP (Small/Medium)
- Iteml # D202XLGLP (Large/Extra Large)
Floor lift knee belt:
- Helps hold knees in place against knee pads
- Simple attachment
- Sliding buckles for precise adjustment
- Item # P11616
Other accessory items available include:
- Extra battery packs
- Battery charging cradle
- Plug-in AC charger
Usage Requirements
The F500S is designed for patients needing a moderate level of assistance during transfer. The patient should have the strength and stability to bear weight on at least one leg. For patients who cannot do so, a passive boom lift such as the Span F500P Full Body Patient Lift should be used.
Note that two or more caregivers may be required for a transfer, based on full assessment of the patient’s:
- Mobility
- Weight
- Size
- Medical conditions
- Mental status
- Ability to assist
Sources:
OSHA, “Guidelines for Nursing Homes”;
FDA, “Kwikpoint®: Patient Lift Safety Guide”
