Product Description

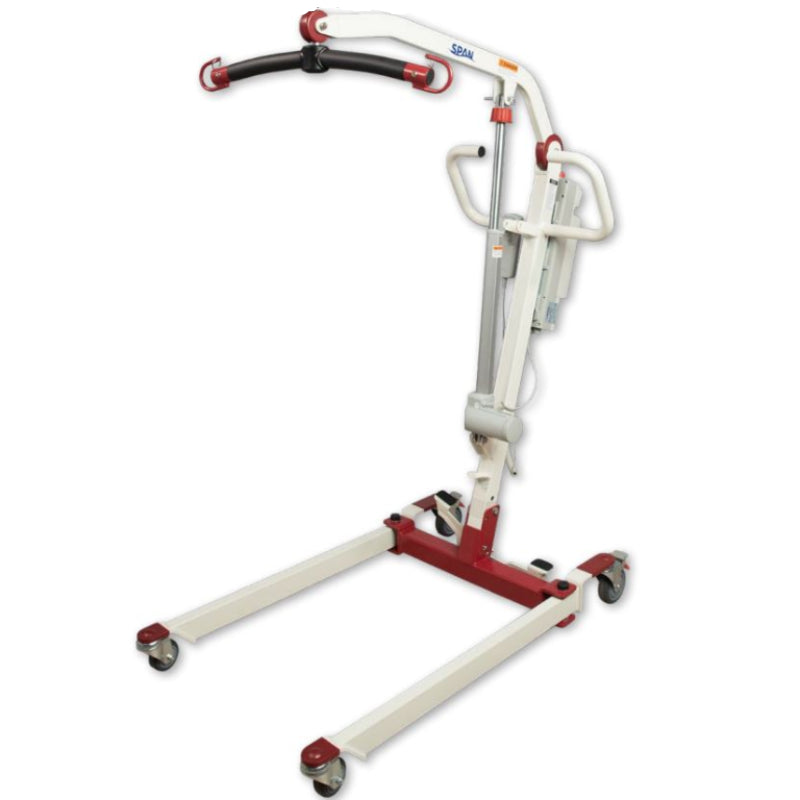

F400 Foldable Portable Patient Lift – Premium Performance for Compact Spaces
The F400 Foldable Portable Patient Lift is a top-tier solution designed for use at home, on the go, or in care facilities. Its compact, foldable design makes it perfect for tight spaces, delivering reliable, premium performance wherever portability and space-saving are essential.
Safe and Reliable
Redundant controls; overload protection; emergency lowering; 3-year frame warranty
Easy operation
Simple charging; audible/visual indicators; locking rear casters.
Compact
Folds flat simply and quickly for transport and storage.
Fast, hassle-free assembly
Packed with Features
- 400 lb. (182 kg) safe working load
- Locking rear casters, foot-activated lock/unlock
- Floor extraction: Can be used to lift patients from floor
- Quick-release battery can be charged via charging cradle (optional), or via plug-in charger (included) for charging in place
- Overload protection with visual/audible alert, halts lifting when capacity is exceeded
- Manual emergency lowering for added safety
- Backlit LCD battery display for ease of viewing
- Audible low-battery indicator
- Certified to: ISO 10535; IEC/EN/ANSI/AAMI/CAN/CSA-C22.2 60601-1, 60101-1-2, and 60601-1-11; SGS Mark for Safety
Specifications
Weight Capacity-400 lb / 182 kg
Overall Base Length-41.0"
External Base Width (Closed)-27.6"
Internal Leg Width (Opened)-32.0"
Upright Mast Height-48.3"
Minimum Lifting Height with Spreader Bar-18.5"
Maximum Lifting Height with Spreader Bar-67.2"
Net Weight et Weight-90 lb / 41 k 90 lb / 41 kg
Shipping W Shipping Weight-104 lb / 47 k 104 lb / 47 kg
Product Codes
F400-Foldable and Portable Patient Lift
Usage Requirements
The F400 is designed for patients needing the maximum level of assistance during transfer. It should be used for
- Patients who are completely dependent on caregiver for transferring
- Paraplegics/Quadriplegics
Note that two or more caregivers may be required for a transfer, based on full assessment of the patient’s:
- Mobility
- Weight
- Size
- Medical conditions
- Mental status
- Ability to assist
Sources:
OSHA, “Guidelines for Nursing Homes”;
FDA, “Kwikpoint®: Patient Lift Safety Guide”
